Wieloobrotowe sprężyny faliste bez podkładek regulacyjnych

Wielozwojowe sprężyny faliste bez podkładek na końcach serii KM

Name: Wielozwojowe sprężyny faliste bez podkładek na końcach serii KM
Brand: beentools

Wielozwojowe sprężyny faliste bez podkładek charakteryzują się brakiem zwojów podporowych na obu końcach, ale składają się z wielowarstwowych sprężyn falistych o całkowitej liczbie warstw większej niż jedna.

Skontaktuj się z nami

Opis

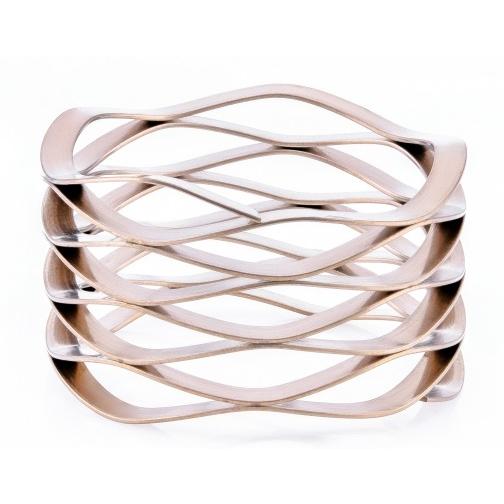

Wieloobrotowe sprężyny faliste bez podkładekto specjalistyczne sprężyny zaprojektowane do kompaktowych instalacji i zastosowań wrażliwych na wagę, oferujące doskonałą elastyczność i wsparcie w ograniczonych przestrzeniach. Każda warstwa charakteryzuje się liczbą fal, taką jak 2,5, 3,5 lub 4,5, przy czym górna i dolna warstwa stykają się na szczytach i dolinach, maksymalizując efektywność zwoju i zwartość sprężyny.

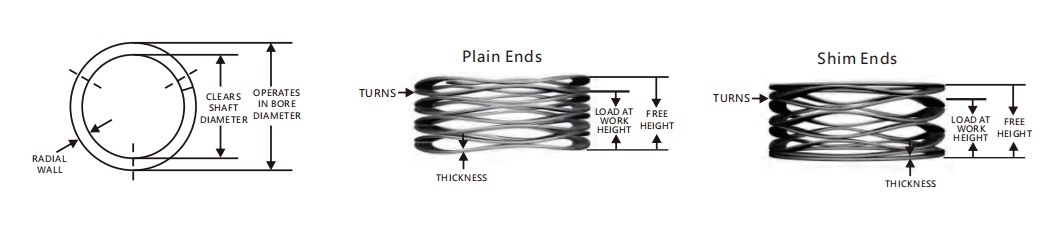

multi-turn wave springs with no shim ends

Wieloobrotowe sprężyny faliste bez podkładek na końcach

Kluczowe cechy i korzyści

Konstrukcja bez podkładek:Wyeliminowanie podkładek w celu uzyskania bardziej zwartej i lekkiej sprężyny, co zmniejsza złożoność konstrukcji i ogólną wagę.
Struktura wielozwojowa:Wiele zwojów w sprężynie zapewnia zwiększoną elastyczność, odporność na odkształcenia i skuteczne wsparcie w wymagających warunkach pracy.
Efektywne połączenie zwojów:Efektywna liczba zwojów jest równa całkowitej liczbie, a górna i dolna warstwa bezpośrednio stykają się na szczytach i w dolinach, zapewniając maksymalne wsparcie.
Dobór materiałów:Wykonane z wysokowytrzymałej stali lub materiałów stopowych, aby zapewnić trwałość i niezawodność przy dużych obciążeniach i cyklicznych naprężeniach.
Amortyzacja drgań i uderzeń:Doskonałe do cyklicznych obciążeń i tłumienia drgań, wydłużając żywotność i niezawodność sprzętu.

Zastosowania

Systemy lotnicze wymagające redukcji masy i kompaktowych konstrukcji
Precyzyjne maszyny o ograniczonej przestrzeni montażowej
Uszczelnienia hydrauliczne i wysokiej klasy silniki elektryczne
Motoryzacja i ogólny sprzęt mechaniczny do amortyzacji uderzeń i drgań

Wieloobrotowe sprężyny faliste bez podkładek są optymalnym wyborem dla krytycznych środowisk, w których przestrzeń i waga są na wagę złota. Ich zaawansowana konstrukcja i wysokowydajne materiały zapewniają niezawodną, długotrwałą elastyczność i wsparcie w przemyśle lotniczym, inżynierii precyzyjnej i innych wymagających dziedzinach.

Parametry techniczne1

Nr art.	Działa w Średnica otworu (mm)	Czyści wał Średnica(mm)	Obciążenie(N)	Wysokość robocza (mm)	Wysokość swobodna (mm)	Szybkość sprężyny (N/mm)
KM05-L1	5	3.5	5	1.14	1.84	7.14
KM05-L2	5	3.5	5	1.52	2.45	5.38
KM05-L3	5	3.5	5	1.91	3.06	4.35
M05-L4	5	3.5	5	2.26	3.68	3.52
KM05-L5	5	3.5	5	2.67	4.29	3.09
KM05-L6	5	3.5	5	3.02	4.9	2.66
KM05-L7	5	3.5	5	3.43	5.52	2.39
KM05-L8	5	3.5	5	4.14	6.74	1.92
KM05-L9	5	3.5	5	4.9	7.97	1.63
KM05-M1	5	3.5	10	1.14	1.89	13.33
KM05-M2	5	3.5	10	1.52	2.52	10
M05-M3	5	3.5	10	1.91	3.15	8.06
KM05-M4	5	3.5	10	2.26	3.78	6.58
KM05-M5	5	3.5	10	2.67	4.41	5.75
KM05-M6	5	3.5	10	3.02	5.04	4.95
KM05-M7	5	3.5	10	3.43	5.04	4.46
KM05-M8	5	3.5	10	4.14	6.93	3.58
KM05-M9	5	3.5	10	4.9	8.19	3.04
KM06-L1	6	4	6	0.61	1.52	6.59
KM06-L2	6	4	6	0.81	2.03	4.92
KM06-L3	6	4	6	1.02	2.54	3.95
KM06-L4	6	4	6	1.22	3.05	3.28
KM06-L5	6	4	6	1.42	3.56	2.8
KM06-L6	6	4	6	1.63	4.06	2.47
KM06-L7	6	4	6	1.83	4.57	2.19
KM06-L8	6	4	6	2.24	5.59	1.79
KM06-L9	6	4	6	2.64	6.6	1.52
KM06-M1	6	4	12	0.74	1.52	15.38
KM06-M2	6	4	12	0.97	2.03	11.32
KM06-M3	6	4	12	1.22	2.54	9.09
KM06-M4	6	4	12	1.47	3.05	7.59
KM06-M5	6	4	12	1.7	3.56	6.45
KM06-M6	6	4	12	1.96	4.06	5.71
KM06-M7	6	4	12	2.18	4.57	5.02
KM06-M8	6	4	12	2.69	5.59	4.14
KM06-M9	6	4	12	3.18	6.6	3.51
KM08-L1	8	5	15	1.7	2.82	13.39
KM08-L2	8	5	15	2.39	3.76	10.95
KM08-L3	8	5	15	2.74	4.7	7.65
KM08-L4	8	5	15	3.56	5.64	7.21
KM08-L5	8	5	15	4.01	6.58	5.84
KM08-L6	8	5	15	4.57	7.52	5.08
KM08-L7	8	5	15	5.26	8.46	4.69
M08-L8	8	5	15	6.35	10.34	3.76
KM08-L9	8	5	15	7.37	12.22	3.09
KM08-M1	8	5	30	1.78	2.82	28.85
KM08-M2	8	5	30	2.54	3.76	24.59
KM08-M3	8	5	30	3.05	4.7	18.18
KM08-M4	8	5	30	3.81	5.64	16.39
KM08-M5	8	5	30	4.32	6.58	13.27
KM08-M6	8	5	30	4.95	7.52	11.67
KM08-M7	8	5	30	5.59	8.46	10.45
KM08-M8	8	5	30	6.86	10.34	8.62
KM08-M9	8	5	30	7.87	12.22	6.9
KM10-L1	10	7	18	1.91	3.96	8.78
KM10-L2	10	7	18	2.54	5.28	6.57
KM10-L3	10	7	18	3.15	6.6	5.22
KM10-L4	10	7	18	3.78	7.92	4.35
KM10-L5	10	7	18	4.42	9.25	3.73
KM10-L6	10	7	18	5.05	10.57	3.26
KM10-L7	10	7	18	5.69	11.89	2.9
KM10-L8	10	7	18	6.32	13.21	2.61
KM10-L9	10	7	18	6.96	14.53	2.38
KM10-M1	10	7	35	2.03	3.96	18.13
KM10-M2	10	7	35	2.79	5.28	14.06
KM10-M3	10	7	35	3.56	6.6	11.51
KM10-M4	10	7	35	4.32	7.92	9.72
KM10-M5	10	7	35	5.08	9.25	8.39
KM10-M6	10	7	35	5.84	10.57	7.4
KM10-M7	10	7	35	6.6	11.89	6.62
KM10-M8	10	7	35	7.37	13.21	5.99
KM10-M9	10	7	35	8.13	14.53	5.47
KM12-L1	12	9	20	1.47	4.34	6.97
KM12-L2	12	9	20	1.98	5.79	5.25
KM12-L3	12	9	20	2.46	7.24	4.18
KM12-L4	12	9	20	2.95	8.69	3.48
KM12-L5	12	9	20	3.45	10.13	2.99
KM12-L6	12	9	20	3.94	11.58	2.62
KM12-L7	12	9	20	4.45	13.03	2.33
KM12-L8	12	9	20	4.93	14.48	2.09
KM12-L9	12	9	20	5.44	15.93	1.91
KM12-M1	12	8.5	40	2.36	4.34	20.2
KM12-M2	12	8.5	40	3.18	5.79	15.33
KM12-M3	12	8.5	40	3.96	7.24	12.2
KM12-M4	12	8.5	40	4.75	8.69	10.15
KM12-M5	12	8.5	40	5.54	10.13	8.71
KM12-M6	12	8.5	40	6.32	11.58	7.6
KM12-M7	12	8.5	40	7.11	13.03	6.76
KM12-M8	12	8.5	40	7.92	14.48	6.1
KM12-M9	12	8.5	40	8.71	15.93	5.54
KM12-H1	12	8.5	60	1.98	4.34	25.42
KM12-H2	12	8.5	60	2.64	5.79	19.05
KM12-H3	12	8.5	60	3.3	7.24	15.23
KM12-H4	12	8.5	60	3.99	8.69	12.77
KM12-H5	12	8.5	60	4.65	10.13	10.95
KM12-H6	12	8.5	60	5.31	11.58	9.57
KM12-H7	12	8.5	60	5.97	13.03	8.5
KM12-H8	12	8.5	60	6.63	14.48	7.64
KM12-H9	12	8.5	60	7.29	15.93	6.94
KM14-L1	14	10	22	2.18	4.95	7.94
KM14-L2	14	10	22	2.95	6.6	6.03
KM14-L3	14	10	22	3.71	8.26	4.84
KM14-L4	14	10	22	4.52	9.91	4.08
KM14-L5	14	10	22	5.33	11.56	3.53
KM14-L6	14	10	22	6.17	13.21	3.13
KM14-L7	14	10	22	7.01	14.86	2.8
KM14-L8	14	10	22	7.85	16.51	2.54
KM14-L9	14	10	22	8.71	18.16	2.33
KM14-M1	14	10	50	2.18	4.95	18.05
KM14-M2	14	10	50	2.95	6.6	13.7
KM14-M3	14	10	50	3.71	8.26	10.99
KM14-M4	14	10	50	4.52	9.91	9.28
KM14-M5	14	10	50	5.33	11.56	8.03
KM14-M6	14	10	50	6.17	13.21	7.1
KM14-M7	14	10	50	7.01	14.86	6.37
KM14-M8	14	10	50	7.85	16.51	5.77
KM14-M9	14	10	50	8.71	18.16	5.29
KM14-H1	14	9	80	3.15	4.95	44.44
KM14-H2	14	9	80	4.19	6.6	33.2
KM14-H3	14	9	80	5.26	8.26	26.67
KM14-H4	14	9	80	6.3	9.91	22.16
KM14-H5	14	9	80	7.34	11.56	18.96
KM14-H6	14	9	80	8.41	13.21	16.67
KM14-H7	14	9	80	9.45	14.86	14.79
KM14-H8	14	9	80	10.49	16.51	13.29
KM14-H9	14	9	80	11.56	18.16	12.12
KM15-L1	15	11	25	2.57	5.18	9.58
KM15-L2	15	11	25	3.43	6.91	7.18
KM15-L3	15	11	25	4.27	8.64	5.72
KM15-L4	15	11	25	5.13	10.36	4.78
KM15-L5	15	11	25	5.99	12.09	4.1
KM15-L6	15	11	25	6.83	13.82	3.58
KM15-L7	15	11	25	7.7	15.54	3.19
KM15-L8	15	11	25	8.53	17.27	2.86
KM15-L9	15	11	25	9.4	19	2.6
KM15-M1	15	10	50	3.43	5.18	28.57
KM15-M2	15	10	50	4.57	6.91	21.37
KM15-M3	15	10	50	5.72	8.64	17.12
KM15-M4	15	10	50	6.86	10.36	14.29
KM15-M5	15	10	50	8	12.09	12.22
KM15-M6	15	10	50	9.14	13.82	10.68
KM15-M7	15	10	50	10.29	15.54	9.52
KM15-M8	15	10	50	11.43	17.27	8.56
KM15-M9	15	10	50	12.57	19	7.78
KM15-H1	15	10	80	3.2	5.18	40.4
KM15-H2	15	10	80	4.19	6.91	29.41
KM15-H3	15	10	80	5.23	8.64	23.46
KM15-H4	15	10	80	6.27	10.36	19.56
KM15-H5	15	10	80	7.32	12.09	16.77
KM15-H6	15	10	80	8.36	13.82	14.65
KM15-H7	15	10	80	9.4	15.54	13.03
KM15-H8	15	10	80	10.46	17.27	11.75
KM15-H9	15	10	80	11.51	19	10.68
KM16-L1	16	11	25	2.11	5.41	7.58
KM16-L2	16	11	25	2.79	7.21	5.66
KM16-L3	16	11	25	3.51	9.02	4.54
KM16-L4	16	11	25	4.19	10.82	3.77
KM16-L5	16	11	25	4.9	12.62	3.24
KM16-L6	16	11	25	6.3	16.23	2.52
KM16-L7	16	11	25	7.7	19.84	2.06
KM16-L8	16	11	25	9.09	23.44	1.74
KM16-M1	16	11	55	3.63	5.41	30.9
KM16-M2	16	11	55	4.83	7.21	23.11
KM16-M3	16	11	55	6.05	9.02	18.52
KM16-M4	16	11	55	7.24	10.82	15.36
KM16-M5	16	11	55	8.46	12.62	13.22
KM16-M6	16	11	55	10.87	16.23	10.26
KM16-M7	16	11	55	13.28	19.84	8.38
KM16-M8	16	11	55	15.7	23.44	7.11
KM16-H1	16	11	90	3.3	5.41	42.65
KM16-H2	16	11	90	4.57	7.21	34.09
KM16-H3	16	11	90	5.59	9.02	26.24
KM16-H4	16	11	90	6.86	10.82	22.73
KM16-H5	16	11	90	7.87	12.62	18.95
KM16-H6	16	11	90	10.16	16.23	14.83
KM16-H7	16	11	90	12.45	19.84	12.18
KM16-H8	16	11	90	14.73	23.44	10.33
KM18-L1	18	13	30	3.63	5.72	14.35
KM18-L2	18	13	30	4.75	7.62	10.45
KM18-L3	18	13	30	5.94	9.53	8.36
KM18-L4	18	13	30	7.14	11.43	6.99
KM18-L5	18	13	30	8.31	13.34	5.96
KM18-L6	18	13	30	10.69	17.15	4.64
KM18-L7	18	13	30	14.25	22.86	3.48
KM18-M1	18	13	55	3.68	5.72	26.96
KM18-M2	18	13	55	4.98	7.62	20.83
KM18-M3	18	13	55	6.22	9.53	16.62
KM18-M4	18	13	55	7.47	11.43	13.89
KM18-M5	18	13	55	8.74	13.34	11.96
KM18-M6	18	13	55	11.23	17.15	9.29
KM18-M7	18	13	55	14.96	22.86	6.96
KM18-H1	18	13	90	3.84	5.72	47.87
KM18-H2	18	13	90	5.13	7.62	36.14
KM18-H3	18	13	90	6.4	9.53	28.75
KM18-H4	18	13	90	7.7	11.43	24.13
KM18-H5	18	13	90	8.97	13.34	20.59
KM18-H6	18	13	90	11.53	17.15	16.01
KM18-H7	18	13	90	15.37	22.86	12.02
KM20-L1	20	15	35	2.72	6.32	9.72
KM20-L2	20	15	35	3.61	8.43	7.26
KM20-L3	20	15	35	4.52	10.54	5.81
KM20-L4	20	15	35	5.41	12.65	4.83
KM20-L5	20	15	35	6.32	14.76	4.15
KM20-L6	20	15	35	8.13	18.97	3.23
KM20-L7	20	15	35	10.82	25.3	2.42
KM20-M1	20	14	70	3.05	6.32	21.41
KM20-M2	20	14	70	4.06	8.43	16.02
KM20-M3	20	14	70	5.08	10.54	12.82
KM20-M4	20	14	70	6.27	12.65	10.97
KM20-M5	20	14	70	7.32	14.76	9.41
KM20-M6	20	14	70	9.17	18.97	7.14
KM20-M7	20	14	70	12.22	25.3	5.35
KM20-H1	20	14	100	4.24	6.32	48.08
KM20-H2	20	14	100	5.66	8.43	36.1
KM20-H3	20	14	100	7.06	10.54	28.74
KM20-H4	20	14	100	8.48	12.65	23.98
KM20-H5	20	14	100	9.91	14.76	20.62
KM20-H6	20	14	100	12.73	18.97	16.03
KM20-H7	20	14	100	16.97	25.3	12
KM25-L1	25	19	50	2.06	6.63	10.94
KM25-L2	25	19	50	2.74	8.84	8.2
KM25-L3	25	19	50	3.43	11.05	6.56
KM25-L4	25	19	50	4.11	13.26	5.46
KM25-L5	25	19	50	4.8	15.47	4.69
KM25-L6	25	19	50	6.2	19.89	3.65
KM25-L7	25	19	50	8.26	26.52	2.74
KM25-M1	25	19	80	2.95	6.63	21.74
KM25-M2	25	19	80	3.94	8.84	16.33
KM25-M3	25	19	80	4.9	11.05	13.01
KM25-M4	25	19	80	5.89	13.26	10.85
KM25-M5	25	19	80	6.88	15.47	9.31
KM25-M6	25	19	80	8.84	19.89	7.24
KM25-M7	25	19	80	11.79	26.52	5.43
KM25-H1	25	19	110	4.04	6.63	42.47
KM25-H2	25	19	110	5.38	8.84	31.79

Parametry techniczne2

Nr art.	Działa w Średnica otworu (mm)	Czyści wał Średnica(mm)	Obciążenie(N)	Wysokość robocza (mm)	Wysokość swobodna (mm)	Współczynnik sprężyny (N/mm)
KM25-H3	25	19	110	6.73	11.05	25.46
KM25-H4	25	19	110	8.08	13.26	21.24
KM25-H5	25	19	110	9.4	15.47	18.12
KM25-H6	25	19	110	12.12	19.89	14.16
KM25-H7	25	19	110	16.15	26.52	10.61
KM28-L1	28	22	50	3.76	7.24	14.37
KM28-L2	28	22	50	5	9.65	10.75
KM28-L3	28	22	50	6.27	12.07	8.62
KM28-L4	28	22	50	7.52	14.48	7.18
KM28-L5	28	22	50	8.79	16.89	6.17
KM28-L6	28	22	50	10.03	19.3	5.39
KM28-L7	28	22	50	11.28	21.72	4.79
KM28-L8	28	22	50	13.79	26.54	3.92
KM28-L9	28	22	50	16.31	31.37	3.32
KM28-M1	28	22	80	4.39	7.24	28.07
KM28-M2	28	22	80	5.84	9.65	21
KM28-M3	28	22	80	7.32	12.07	16.84
KM28-M4	28	22	80	8.79	14.48	14.06
KM28-M5	28	22	80	10.24	16.89	12.03
KM28-M6	28	22	80	11.71	19.3	10.54
KM28-M7	28	22	80	13.18	21.72	9.37
KM28-M8	28	22	80	16.1	26.54	7.66
KM28-M9	28	22	80	19.02	31.37	6.48
KM28-H1	28	22	130	4.57	7.24	48.69
KM28-H2	28	22	130	6.07	9.65	36.31
KM28-H3	28	22	130	7.59	12.07	29.02
KM28-H4	28	22	130	9.12	14.48	24.25
KM28-H5	28	22	130	10.64	16.89	20.8
KM28-H6	28	22	130	12.17	19.3	18.23
KM28-H7	28	22	130	13.69	21.72	16.19
KM28-H8	28	22	130	16.71	26.54	13.22
KM28-H9	28	22	130	19.76	31.37	11.2
KM30-L1	30	24	50	3.18	7.62	11.26
KM30-L2	30	24	50	4.22	10.16	8.42
KM30-L3	30	24	50	5.28	12.7	6.74
KM30-L4	30	24	50	6.32	15.24	5.61
KM30-L5	30	24	50	7.39	17.78	4.81
KM30-L6	30	24	50	8.43	20.32	4.21
KM30-L7	30	24	50	9.5	22.86	3.74
KM30-L8	30	24	50	11.61	27.94	3.06
KM30-L9	30	24	50	13.72	33.02	2.59
KM30-M1	30	24	90	3.51	7.62	21.9
KM30-M2	30	24	90	4.7	10.16	16.48
KM30-M3	30	24	90	5.87	12.7	13.18
KM30-M4	30	24	90	7.04	15.24	10.98
KM30-M5	30	24	90	8.2	17.78	9.39
KM30-M6	30	24	90	9.37	20.32	8.22
KM30-M7	30	24	90	10.54	22.86	7.31
KM30-M8	30	24	90	12.9	27.94	5.98
KM30-M9	30	24	90	15.24	33.02	5.06
KM30-H1	30	24	130	4.19	7.62	37.9
KM30-H2	30	24	130	5.59	10.16	28.45
KM30-H3	30	24	130	6.99	12.7	22.77
KM30-H4	30	24	130	8.38	15.24	18.95
KM30-H5	30	24	130	9.78	17.78	16.25
KM30-H6	30	24	130	11.18	20.32	14.22
KM30-H7	30	24	130	12.57	22.86	12.63
KM30-H8	30	24	130	15.37	27.94	10.34
KM30-H9	30	24	130	18.16	33.02	8.75
KM35-L1	35	27	70	3.94	8.38	15.77
KM35-L2	35	27	70	5.23	11.18	11.76
KM35-L3	35	27	70	6.55	13.97	9.43
KM35-L4	35	27	70	7.87	16.76	7.87
KM35-L5	35	27	70	9.17	19.56	6.74
KM35-L6	35	27	70	10.49	22.35	5.9
KM35-L7	35	27	70	11.81	25.15	5.25
KM35-L8	35	27	70	14.43	30.73	4.29
KM35-L9	35	27	70	17.04	36.32	3.63
KM35-M1	35	27	110	4.14	8.38	25.94
KM35-M2	35	27	110	5.51	11.18	19.4
KM35-M3	35	27	110	6.88	13.97	15.51
KM35-M4	35	27	110	8.26	16.76	12.94
KM35-M5	35	27	110	9.63	19.56	11.08
KM35-M6	35	27	110	11.02	22.35	9.71
KM35-M7	35	27	110	12.4	25.15	8.63
KM35-M8	35	27	110	15.14	30.73	7.06
KM35-M9	35	27	110	17.91	36.32	5.98
KM35-H1	35	27	160	4.04	8.38	36.87
KM35-H2	35	27	160	5.38	11.18	27.59
KM35-H3	35	27	160	6.73	13.97	22.1
KM35-H4	35	27	160	8.08	16.76	18.43
KM35-H5	35	27	160	9.42	19.56	15.78
KM35-H6	35	27	160	10.77	22.35	13.82
KM35-H7	35	27	160	12.12	25.15	12.28
KM35-H8	35	27	160	14.81	30.73	10.05
KM35-H9	35	27	160	17.5	36.32	8.5
KM40-L1	40	30	100	2.9	9.14	16.03
KM40-L2	40	30	100	3.86	12.19	12
KM40-L3	40	30	100	4.8	15.24	9.58
KM40-L4	40	30	100	5.77	18.29	7.99
KM40-L5	40	30	100	6.73	21.34	6.84
KM40-L6	40	30	100	7.7	24.38	6
KM40-L7	40	30	100	8.66	27.43	5.33
KM40-L8	40	30	100	10.59	33.53	4.36
KM40-L9	40	30	100	12.52	39.62	3.69
KM40-M1	40	30	150	5.44	9.14	40.54
KM40-M2	40	30	150	7.24	12.19	30.3
KM40-M3	40	30	150	9.04	15.24	24.19
KM40-M4	40	30	150	10.85	18.29	20.16
KM40-M5	40	30	150	12.65	21.34	17.26
KM40-M6	40	30	150	14.48	24.38	15.15
KM40-M7	40	30	150	16.28	27.43	13.45
KM40-M8	40	30	150	19.89	33.53	11
KM40-M9	40	30	150	23.5	39.62	9.31
KM40-H1	40	30	300	5.66	9.14	86.21
KM40-H2	40	30	300	7.54	12.19	64.52
KM40-H3	40	30	300	9.42	15.24	51.55
KM40-H4	40	30	300	11.33	18.29	43.1
KM40-H5	40	30	300	13.21	21.34	36.9
KM40-H6	40	30	300	15.09	24.38	32.29
KM40-H7	40	30	300	16.97	27.43	28.68
KM40-H8	40	30	300	20.75	33.53	23.47
KM40-H9	40	30	300	24.54	39.62	19.89
KM45-L1	45	35	110	3.38	9.91	16.85
KM45-L2	45	35	110	4.52	13.21	12.66
KM45-L3	45	35	110	5.64	16.51	10.12
KM45-L4	45	35	110	6.76	19.81	8.43
KM45-L5	45	35	110	7.9	23.11	7.23
KM45-L6	45	35	110	9.02	26.42	6.32
KM45-L7	45	35	110	10.16	29.72	5.62
KM45-L8	45	35	110	12.4	36.32	4.6
KM45-L9	45	35	110	14.66	42.93	3.89
KM45-M1	45	35	225	5.33	9.91	49.13
KM45-M2	45	35	225	6.99	13.21	36.17
KM45-M3	45	35	225	9.14	16.51	30.53
KM45-M4	45	35	225	10.8	19.81	24.97
KM45-M5	45	35	225	12.7	23.11	21.61
KM45-M6	45	35	225	14.48	26.42	18.84
KM45-M7	45	35	225	16.26	29.72	16.72
KM45-M8	45	35	225	19.81	36.32	13.63
KM45-M9	45	35	225	23.37	42.93	11.5
KM45-H1	45	35	400	6.43	9.91	114.94
KM45-H2	45	35	400	8.38	13.21	82.82
KM45-H3	45	35	400	11.2	16.51	75.33
KM45-H4	45	35	400	12.95	19.81	58.31
KM45-H5	45	35	400	15.37	23.11	51.68
KM45-H6	45	35	400	17.27	26.42	43.72
KM45-H7	45	35	400	19.68	29.72	39.88
KM45-H8	45	35	400	24.26	36.32	33.17
KM45-H9	45	35	400	28.45	42.93	27.62
KM50-L1	50	40	110	4.83	10.29	20.15
KM50-L2	50	40	110	6.1	13.72	14.44
KM50-L3	50	40	110	7.87	17.15	11.85
KM50-L4	50	40	110	9.4	20.57	9.85
KM50-L5	50	40	110	11.3	24	8.66
KM50-L6	50	40	110	12.7	27.43	7.47
KM50-L7	50	40	110	14.99	30.86	6.93
KM50-L8	50	40	110	18.16	37.72	5.62
KM50-L9	50	40	110	21.34	44.58	4.73
KM50-L10	50	40	110	24.64	51.44	4.1
KM50-M1	50	40	225	4.62	10.29	39.68
KM50-M2	50	40	225	6.35	13.72	30.53
KM50-M3	50	40	225	7.49	17.15	23.29
KM50-M4	50	40	225	8.89	20.57	19.26
KM50-M5	50	40	225	10.54	24	16.72
KM50-M6	50	40	225	11.89	27.43	14.48
KM50-M7	50	40	225	13.59	30.86	13.03
KM50-M8	50	40	225	16.71	37.72	10.71
KM50-M9	50	40	225	19.61	44.58	9.01
KM50-M10	50	40	225	22.48	51.44	7.77
KM50-H1	50	40	400	5.92	10.29	91.53
KM50-H2	50	40	400	7.8	13.72	67.57
KM50-H3	50	40	400	10.16	17.15	57.22
KM50-H4	50	40	400	11.79	20.57	45.56
KM50-H5	50	40	400	14.15	24	40.61
KM50-H6	50	40	400	15.62	27.43	33.87
KM50-H7	50	40	400	17.91	30.86	30.89
KM50-H8	50	40	400	21.54	37.72	24.72
KM50-H9	50	40	400	25.65	44.58	21.13
KM50-H10	50	40	400	29.21	51.44	17.99
KM55-L1	55	45	125	5.59	11.05	22.89
KM55-L2	55	45	125	7.72	14.73	17.83
KM55-L3	55	45	125	9.68	18.41	14.3
KM55-L4	55	45	125	11.48	22.1	11.77
KM55-L5	55	45	125	13.92	25.78	10.54
KM55-L6	55	45	125	15.52	29.46	8.97
KM55-L7	55	45	125	18.41	33.15	8.49
KM55-L8	55	45	125	21.67	40.51	6.63
KM55-L9	55	45	125	25.65	47.88	5.62
KM55-L10	55	45	125	29.77	55.25	4.91
KM55-M1	55	45	250	3.1	11.05	31.45
KM55-M2	55	45	250	4.11	14.73	23.54
KM55-M3	55	45	250	5.16	18.41	18.85
KM55-M4	55	45	250	6.2	22.1	15.72
KM55-M5	55	45	250	7.21	25.78	13.46
KM55-M6	55	45	250	8.26	29.46	11.79
KM55-M7	55	45	250	9.27	33.15	10.47
KM55-M8	55	45	250	11.33	40.51	8.57
KM55-M9	55	45	250	13.41	47.88	7.25
KM55-M10	55	45	250	15.47	55.25	6.28
KM55-H1	55	45	400	5.31	11.05	69.69
KM55-H2	55	45	400	7.24	14.73	53.4
KM55-H3	55	45	400	9.09	18.41	42.87
KM55-H4	55	45	400	10.64	22.1	34.9
KM55-H5	55	45	400	12.24	25.78	29.54
KM55-H6	55	45	400	14.1	29.46	26.04
KM55-H7	55	45	400	15.82	33.15	23.08
KM55-H8	55	45	400	19.3	40.51	18.86
KM55-H9	55	45	400	23.11	47.88	16.15
KM55-H10	55	45	400	26.54	55.25	13.93
KM60-L1	60	50	135	5.59	11.43	23.12
KM60-L2	60	50	135	7.47	15.24	17.37
KM60-L3	60	50	135	9.32	19.05	13.87
KM60-L4	60	50	135	11.2	22.86	11.58
KM60-L5	60	50	135	13.06	26.67	9.92
KM60-L6	60	50	135	14.94	30.48	8.69
KM60-L7	60	50	135	16.79	34.29	7.71
KM60-L8	60	50	135	20.52	41.91	6.31
KM60-L9	60	50	135	24.26	49.53	5.34
KM60-L10	60	50	135	27.99	57.15	4.63
KM60-M1	60	50	275	6.65	11.43	57.53
KM60-M2	60	50	275	8.86	15.24	43.1
KM60-M3	60	50	275	11.07	19.05	34.46
KM60-M4	60	50	275	13.28	22.86	28.71
KM60-M5	60	50	275	15.49	26.67	24.6
KM60-M6	60	50	275	17.7	30.48	21.52
KM60-M7	60	50	275	19.94	34.29	19.16
KM60-M8	60	50	275	24.36	41.91	15.67
KM60-M9	60	50	275	28.78	49.53	13.25
KM60-M10	60	50	275	33.22	57.15	11.49
KM60-H1	60	50	450	7.75	11.43	122.28
KM60-H2	60	50	450	10.31	15.24	91.28
KM60-H3	60	50	450	12.9	19.05	73.17
KM60-H4	60	50	450	15.47	22.86	60.89
KM60-H5	60	50	450	18.06	26.67	52.26
KM60-H6	60	50	450	20.62	30.48	45.64
KM60-H7	60	50	450	23.22	34.29	40.65
KM60-H8	60	50	450	28.37	41.91	33.23
KM60-H9	60	50	450	33.53	49.53	28.13
KM60-H10	60	50	450	38.68	57.15	24.36
